Part no -
06746-01
TruePhase® 1310-250 Polarization-Maintaining Optical Fiber
The TruePhase 1310 Polarization-Maintaining Optical Fiber is optimized for operation at 1310 nm for use in CATV components, fused fiber couplers and applications for 1310 nm.

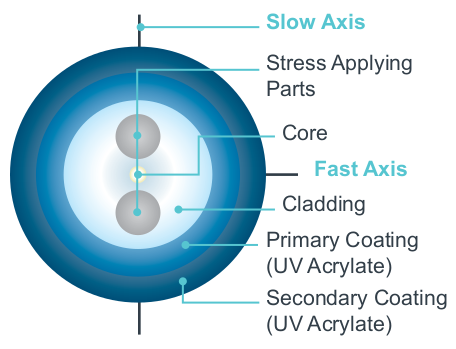

The fiber coating is a dual UV acrylate with a diameter of 250 μm. The fiber is proof tested to 200 kpsi.
The TruePhase 1310 Polarization-Maintaining Optical Fiber is optimized for operation at 1310 nm for use in CATV components, fused fiber couplers and applications for 1310 nm.
The fiber coating is a dual UV acrylate with a diameter of 250 μm. The fiber is proof tested to 200 kpsi.
Features
- Low beat length of ≤ 4.0 mm
- Low attenuation of ≤ 1.2 dB/km
- High birefringence
- Tight geometrical tolerances
- Low sensitivity to bending-induced attenuation
- Typical crosstalk of -35 dB/100 m
Overview
The TruePhase 1310 Polarization-Maintaining Optical Fiber is optimized for operation at 1310 nm for use in CATV components, fused fiber couplers and applications for 1310 nm.
The fiber coating is a dual UV acrylate with a diameter of 250 μm. The fiber is proof tested to 200 kpsi.
Typical Applications
- CATV Components and Devices
- External Modulators at 1310 nm
- PM Fused Fiber Couplers
- Source Laser Pigtails
- Switches
- Silicon Photonics Connections
Product Specifications
| Product Specifications | |
|---|---|
| Product Description | TruePhase 1310-250 Optical Fiber |
| Dimensions/Geometric Properties | |
| Coating Material | Dual UV Acrylate |
| Cladding Diameter | 125 ± 1 µm |
| Coating/Buffer Diameter | 250 ± 10 µm |
| Clad Non-Circularity | ≤ 2.0% |
| Core/Clad Offset | ≤ 0.7 µm |
| Optical Requirements | |
| Type | Polarization-Maintaining |
| Operating Wavelength | 1310 nm |
| Fiber Cutoff Wavelength | ≤ 1290 nm |
| Mode Field Diameter @ 1310 nm | 9.0 ± 0.5 µm |
| Attenuation @ 1310 nm | ≤ 1.2 dB/km |
| Beat Length @ 1310 nm | ≤ 4.0 mm |
| Crosstalk @ 1310 nm/100m | ≤ -30 dB/100 m |
| Crosstalk (Typical) @ 1310 nm | ≤ -35 dB/100 m |
| Numerical Aperture (Nominal) | 0.13 |
| Mechanical and Testing Data | |
| Operating Temperature | -40 to +85 ºC |
| Proof Test Level | ≥ 200 kpsi (1.38 GPa) |
| Order by Part Number | F9922-02 |
| OPTIONS | Cabling, Coating Material and Dimensions, Metalization, Optical Properties, Proof Test |
