Part no - 07207-01

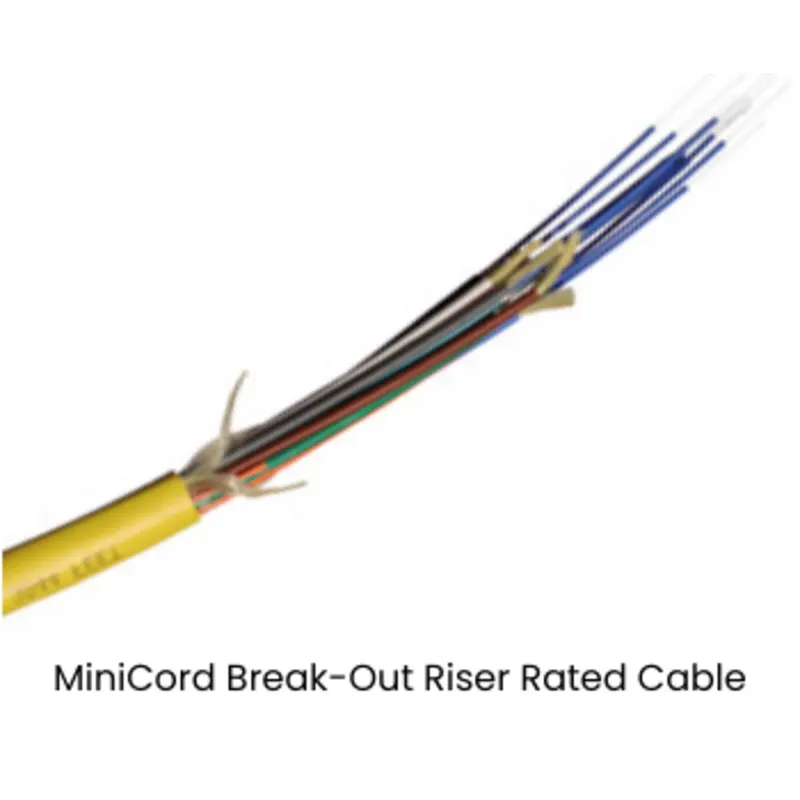

MiniCord® Breakout Riser Rated Cable

Installing or rearranging fiber optic cable in a confined space or cabinet can difficult and time-consuming. To help remedy this problem, Lightera offers the MiniCord® Riser-Ratd Breakout Cable, a compact fiber optic cable that can be installed in virtually any location and used for almost any premises application. In fact, the MiniCord Riser-Rated Breakout Cable is one of the smallest cables of its type available in the optical industry today.

MiniCord Breakout Cables with 12 optical fibers or less consist of two to twelve 1.6 mm MiniCord subunits covered by a PVC outer jacket.

Installing or rearranging fiber optic cable in a confined space or cabinet can difficult and time-consuming. To help remedy this problem, Lightera offers the MiniCord® Riser-Ratd Breakout Cable, a compact fiber optic cable that can be installed in virtually any location and used for almost any premises application. In fact, the MiniCord Riser-Rated Breakout Cable is one of the smallest cables of its type available in the optical industry today.

MiniCord Breakout Cables with 12 optical fibers or less consist of two to twelve 1.6 mm MiniCord subunits covered by a PVC outer jacket.

Features And Benefits

  • Small subunits simplify installation in space-constrained areas, helping to ensure lower total installed costs
  • Fiber counts of 2-12
  • Color-coded outer jacketing of subunits for easy fiber identification
  • Excellent for use in central offices, head-ends, equipment rooms, data centers and a variety of other applications
  • RoHS-compliant; free from heavy metals and environmentally friendly
  • UL Listed Riser per UL 1666 Riser Flame Test and CSA certified per OFN FT4
  • Available with Lightera AllWave® FLEX+ Zero Water Peak (ZWP) Single-Mode Optical Fiber, AllWave ZWP Single-Mode Optical Fiber and other optical fibers including LaserWave® Multimode Optical Fibers


MiniCord® Breakout Riser Rated Cable

Product Description

Installing or rearranging fiber optic cable in a confined space or cabinet can difficult and time-consuming. To help remedy this problem, Lightera offers the MiniCord® Riser-Ratd Breakout Cable, a compact fiber optic cable that can be installed in virtually any location and used for almost any premises application. In fact, the MiniCord Riser-Rated Breakout Cable is one of the smallest cables of its type available in the optical industry today.

MiniCord Breakout Cables with 12 optical fibers or less consist of two to twelve 1.6 mm MiniCord subunits covered by a PVC outer jacket.

Why the Minicord Breakout Cable?

The Lightera MiniCord Riser-Rated Breakout Cable answers the need for a robust and reliable cabling solution that can handle virtually any indoor application, in most environments including the central office, data center or equipment room.

The MiniCord Breakout Cable's versatile design saves time during deployment and modification, thereby helping to ensure lower total installed costs. To save even more time and money, this cable features superior tight buffering over Lightera’ proprietary D-LUX® Fiber Coating for minimal termination effort.

Typical indoor uses for the MiniCord Breakout Cable include tie cabling, electronics interconnect, cross-connect and signal distribution applications.

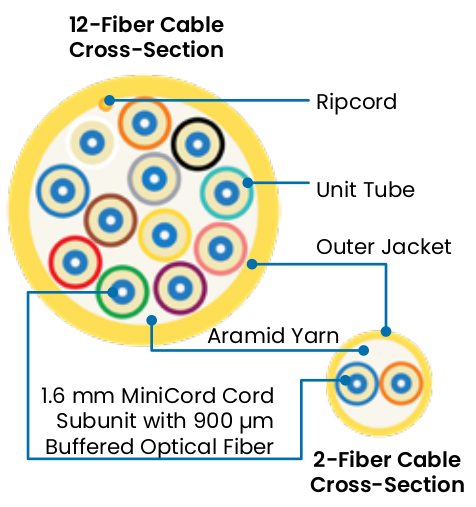

MiniCord® Breakout Riser Rated Cable Design Information

            2-12 Fiber Cables:

  • 6- and 8-fiber cables have central organizers
  • 2-, 4-, and 12-fiber cables do not use central organizers

Specifications

Specifications
Fiber Count 2 4 6 8 12
Version E
Outer Diameter – in. (mm) 0.19 (4.7) 0.21 (5.5) 0.25 (6.4) 0.29 (7.5) 0.33 (8.4)
Weight – lb/kft (kgm/km) 12.3 (18.3) 16.8 (25.0) 24.2 (36.0) 33.8 (50.3) 38.4 (57.2)
Performance Standard Tested per Applicable Requirements of TIA/EIA 455, IEC 60794, UL 1666, OFN FT4 and Telcordia Technologies 409.
Maximum Tensile Rating – lb (N) 150 (667) 200 (890) 300 (1334) 400 (1779)
Temperature
Installation -0 °C to 50 °C (22 °F to 122 °F)
Operation -20 °C to 70 °C (-4 °F to 158 °F)
Storage -40 °C to 70 °C (-40 °F to 158 °F)

MiniCord Breakout Cable Ordering Information

MiniCord Breakout Cable Ordering Information
Example LGMC-036B-WRY¹
Part Number LGMC-NNN X Y R Z
LGMC MicroCord Breakout Cable
NNN Fiber Count
002, 004, 006, 008, 012
X Cable Version
E = All Fiber Counts
Y Fiber Type (see chart)
R Riser
Z Jacket Color²
Y = Yellow (Single-Mode Optical Fiber)
O = Orange (50/125 µm Multimode Optical Fiber)
A = Aqua (LaserWave® Optical Fiber)
Note ¹ Part Number shown is for a MiniCord Riser-Rated Breakout Cable with 12 AllWave ZWP Optical Fibers and standard cable print:
Lightera MINICORD ALLWAVE FLEX+ ZWP OPTICAL CABLE -C-LGMC-012E-WPY-4 C (UL) US TYPE OFNR [CSA OFN FT4] [LOT NO] [LENGTH IN FEET]
² Contact Lightera for availability of alternative jacket colors.

Fiber Type

Fiber Type
Code Description
W AllWave FLEX+ ZWP Bend-Optimized Single-Mode Optical Fiber (G.657.A2)
9 AllWave FLEX Max Bend-Optimized Single-Mode Optical Fiber (G.657.B3 & G.652.D)
K LaserWave® FLEX G+ Multimode Optical Fiber (OM2)+
3 LaserWave FLEX 300 Multimode Optical Fiber (OM3)+
5 LaserWave FLEX 550 Multimode Optical Fiber (OM4)+

Maximum Cable Attenuation 1310 Nm

Maximum Cable Attenuation*
Single-Mode
Single-Mode Optical Fibers (dB/km) 1310 nm 1550 nm MCA (Z)
AllWave FLEX+ and AllWave FLEX Max Single-Mode Optical Fiber (G.657.A2)+
0.4
0.5

0.7
0.3
0.5

0.7

 4
5+
7+
Multimode
Multimode Optical Fibers (dB/km) 850 nm 1300 nm MCA (Z)
50 µm Multimode and LaserWave FLEX G+ Optical Fiber

 3.5 1.5 G
LaserWave FLEX 300 and LaserWave FLEX 550 Optical Fiber

 3.5 1.5 G*
* Installed attenuation values shall be at or below those listed above.

Contact Information

For additional information please contact your sales representative. You can also visit our website at www.lightera.com or call 1-888-FIBERHELP (1-888-342-3743) USA or 1-770-798-555 outside the USA. For a full list of our certifications, visit our website.
